NNX-2396Bi-20D NNX-3296Bi-20D – Netlife Technologies

SFP+ 10G BiDi

NNX-2396Bi-20D

NNX-3296Bi-20D

SFP+ 10G, SM, BiDi, 20km

Short Description

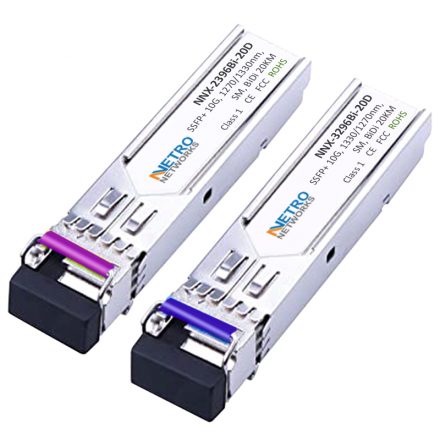

10Gb/s SFP+ SM, BiDi, 1270nm/1330nm, 20km Optical Transceiver Module, LC

Application

10GBASE-ER/LW
10G Fiber Channel
10G SONET/SDH, OTU2/2e
10GBASE-BX

Standard

Compliant with MSA SFP+ specification(SFF-8431)
Compliant with SFF-8472
CPRI Line Rate Option: 9830.4Mbps
Compliant to IEEE 802.3ae

DOWNLOAD DATASHEET ENQUIRY NOW

Overview

The NETRO Networks 10GBASE-BR 20km transceiver is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.3Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 20km in 9/125um single mode fiber.

Specifications

Specification:

Absolute Maximum Ratings
Parameter	Symbol	Min	Max	Unit
Storage temperature	TS	-40	85	°C
Power Supply Voltage	Vcc	-0.5	+4	V
Relative Humidity	RH	5	95	%

Recommended Operating Conditions
Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature (Commercial)	Tc	-5		70	°C
Operating Case Temperature (Industrial)	Tc	-40		85	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc			300	mA
Data Rate			10.3125		Gbps
Fiber Length 9/125μm core SMF		–	–	20	km

Electrical Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Transmitter differential input voltage		180		850	mV
Receiver differential output Voltage		300		850	mV
Transmit Fault (TX_Fault)	Voh	2.4		Vcc+0.3	V	LVTTL
Transmit Fault (TX_Fault)	Vol	-0.3		0.4	V	LVTTL
Loss of Signal (LOS)	Voh	2.4		Vcc+0.3	V	LVTTL
Loss of Signal (LOS)	Vol	-0.3		0.4	V	LVTTL
TX Disable	Vih	2		Vcc+0.3	V	LVTTL
TX Disable	Vil	-0.3		0.8	V	LVTTL

Optical transmitter Characteristics
Parameter	Symbol	Min	Typical	Max	Unit	Notes
Launched Power (avg.)	Pout	0		5	dBm
Operating Wavelength Range	λc	1320	1330	1340	nm
		1260	1270	1280
Spectral Width	∆λ			1	nm	DFB
Side Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	3.5			dB	2
Relative Intensity Noise	RIN			-128	dB/Hz
Optical Return Loss		12			dB
Transmitter and Dispersion Penalty	TDP			3.2	dB
Optical Tx Output disable	Pdis			-45	dBm
Output Eye Diagram	Complies with IEEE802.3ae eye masks when filtered

Key Features

Up to 11.3 Gbps data rate
1270nm DFB Tx/1330nm PIN Rx for SFP-10G-BXU-20
1330nm DFB Tx/1270nm PIN Rx for SFP-10G-BXD-20
Simplex LC receptacle optical interface compliant
Single +3.3V power supply
Hot-pluggable
AC coupling of LVPECL signals
International Class1 laser safety certified
Operating temperature range: Commercial: -5°C~70°C & Industrial: -40°C~85°C
RoHS Compliant
DDMI function available with internally calibrated mode
