GPON ONT

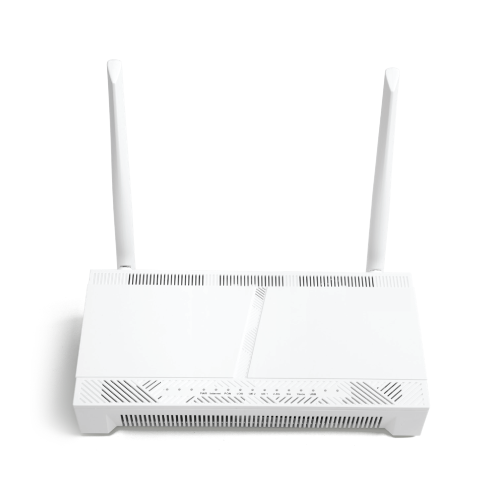

Titanium T21 Pro

Dual-band ONT with extended Wi-Fi performance | (Titanium 2122A)

Titanium T21 Pro is a newly designed ONT which has higher dual Wi-Fi band throughput that makes it a powerful device for good coverage at homes. This ONT is the optimal device for any home as it supports Voice & other internet services.

DOWNLOAD DATASHEET ENQUIRY NOW
General Specifications

Dimensions 183.4mm(L) × 140.7mm(W) × 39.5mm(H)

Weight < 320 g Power supply voltage 12 Vdc ± 5%, 1.5A

Operating temperature 0 – 50 °C

Storage temperature -20 to 80 °C

User Interface

2x GE Ports

1x FXS (Voice) Port

1x USB Port

1x Power connector

Lan Interface
  • Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T)
  • LED indicators for link & activity
Wi-Fi Specifications

802.11n

  • Throughput > 140Mbps at 40MHz bandwidth
  • Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth
  • Receiving sensitivity -68dBm

802.11AC

  • Throughput > 550 Mbps
  • EVM (11ac MCS9) : < -32dB
VoIP
  • Supports SIP, RTP protocol
  • CODEC: G.711, G.729(A/B)
  • Support Call ID / Call waiting / Call forwarding / Call Transfer / 3-way Calling and T.38 FAX
  • Support echo cancellation. Compliant with G.165, G.168
  • Support voice activity detection, comfort noise insertion
Management
  • PPPoE
  • DHCP
  • Static IP
  • Factory restore
  • Protocol port 80 enable/disable
Interoperability
  • TR-255 compliant

Interoperable OLT

  • Huawei MA5600
  • Huawei MA5608T
  • ISAM 7360FX
  • Zhone – MXK – F
  • ZTE ZXA10 C300
  • Saturn OLT
  • Atlas OLT
Model Name

Titanium 2122A
