GPON ONT

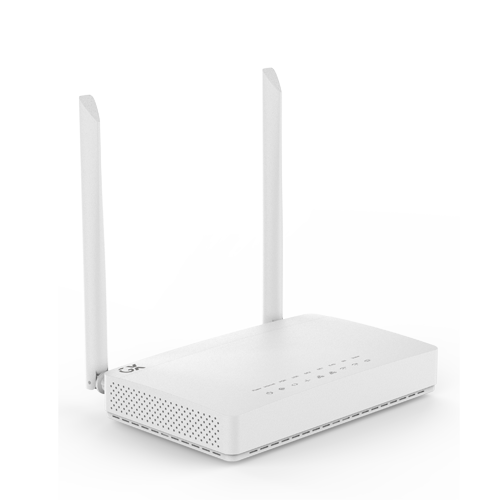

Titanium T21A

Best Dual band Wi-Fi router with voice

Titanium T21A is our one of the latest WiFi HGU (11AC and 11N) which supports 2xGE + 1xVOICE + WiFi (11N and 11 AC ) with speeds upto 800 Mbps. This device is better suited for end users who want to experience triple play services at their Homes. It provides support Gigabit data bandwitdth, IPTV and other services.

DOWNLOAD DATASHEET ENQUIRY NOW
General Specifications

Dimensions 135mm(L)×110mm(W)×28mm(H)

Weight < 500 g Power supply voltage 12 Vdc ± 5%, 1.5A

Power consumption typ. 12.5W

Operating temperature 0 – 50 °C

Storage temperature 0 – 70 °C

User Interface

1x FXS Voice interface/POTS

2x Gigabit Ethernet (GE)

1x Power connector

Standards Compliance
  • Compliant with ITU-T G.984 (G.984.5 support)
  • Compliant with SFF-8472
  • Compliant with IEEE 802.3 Ethernet
  • Compliant with ITU-T G.984.2 Amd1, Class B+
  • Compliant with 802.1 q/p VLANs
Lan Interface
  • Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T)
  • LED indicators for link & activity
Multicast
  • IGMP Snooping
  • 64 x 4 Multicast groups
  • CTC controllable snooping
Interoperability
  • TR255 complaint

Interoperable OLT

  • Huawei MA5600
  • Huawei MA5608T
  • ISAM 7360 FX
  • Zhone – MXK-F
  • ZTE ZXA10 C300
  • Saturn OLT
  • Atlas OLT
Voice FXS
  • Supports SIP, RTP protocol
  • CODEC: G.711, G.729(A/B)
  • Support Call ID / Call waiting / Call forwarding / Call Transfer / 3-way Calling and T.38 FAX
  • Support echo cancellation, compliant with G.165, G.168
  • Support voice activity detection, comfort noise insertion
Wi-Fi Specifications

802.11n

  • Throughput > 140Mbps at 40MHz bandwidth
  • Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth
  • Receiving sensitivity -68dBm

802.11AC

    • Throughput > 550 Mbps
    • EVM (11ac MCS9) : < -32dB
HGU Remote WAN Management
  • PPPoE
  • DHCP
  • Static IP
  • Factory restore
  • Protocol port 80 enable/disable
