GPON ONT

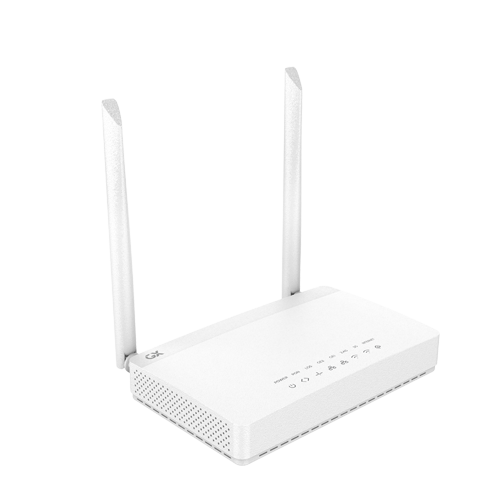

Titanium E20

Home gateway unit with Dualband Wi-Fi support

Titanium E20 is our one of the latest WiFi Home Gateway unit which supports speeds upto 1200 Mbps. Its a new gateway with Fiber compatible speeds for best experience at homes.

DOWNLOAD DATASHEET ENQUIRY NOW
General Specifications

Dimensions 135mm(L)×110mm(W)×28mm(H)

Weight < 500 g Power supply voltage 12 Vdc ± 5%, 1.5A

Power consumption typ. 12.5W

Operating temperature 0 – 50 °C

Storage temperature 0 – 70 °C

User Interface

2x Gigabit Ethernet (GE)

1x Power connector

Standards Compliance
  • Compliant with ITU-T G.984 (G.984.5 support)
  • Compliant with SFF-8472
  • Compliant with IEEE 802.3 Ethernet
  • Compliant with ITU-T G.984.2 Amd1, Class B+
  • Compliant with 802.1 q/p VLANs
Lan Interface
  • Compliant with IEEE 802.3 (u & az) Clause 40 (1000/100/10BASE-T)
  • LED indicators for link & activity
Wi-Fi Specifications

802.11n

  • Throughput > 140Mbps at 40MHz bandwidth
  • Compliant with IEEE 802.11n, 2.4GHz, 20/40MHz bandwidth
  • Receiving sensitivity -68dBm

802.11AC

    • Throughput > 550 Mbps
    • EVM (11ac MCS9) : < -32dB
HGU Remote WAN Management
  • PPPoE
  • DHCP
  • Static IP
  • Factory restore
  • Protocol port 80 enable/disable
