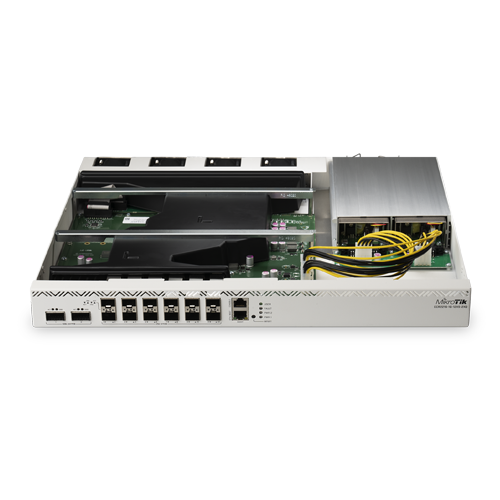

CCR2216-1G-12XS-2XQ
The new MikroTik flagship with the power of a whole fleet. Unleash the power of 100 Gigabit networking with L3 Hardware Offloading! This router can be a handy drop-in upgrade for existing CCR1072 setups.
General Specifications
Specifications
| Details | |
|---|---|
| Product code | CCR2216-1G-12XS-2XQ |
| Architecture | ARM 64bit |
| CPU | AL73400 |
| CPU core count | 16 |
| CPU nominal frequency | 2000 MHz |
| Switch chip model | 98DX8525 |
| Dimensions | 443 x 367 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS (v7 only) |
| Size of RAM | 16 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $2795.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 128 W |
| Max power consumption without attachments | 80 W |
| Cooling type | 4 fans |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| Number of 25G SFP28 ports | 12 |
| Number of 100G QSFP28 ports | 2 |
Peripherals
| Details | |
|---|---|
| Serial console port | RJ45 |
| Number of M.2 slots | 2 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | 20 |
