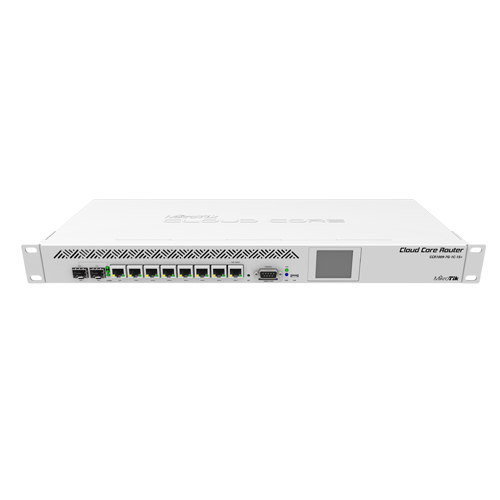

CCR1009-7G-1C-1S+
1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6
General Specifications
Specifications
| Details | |
|---|---|
| Product code | CCR1009-7G-1C-1S+ |
| Architecture | TILE |
| CPU | TLR4-00980 |
| CPU core count | 9 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 175 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| IPsec hardware acceleration | Yes |
| Suggested price | $545.00 |
Powering
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 39 W |
| Max power consumption without attachments | 34 W |
| Cooling type | 2 fans |
| PoE in | Passive PoE |
| PoE in input Voltage | 15-57 V |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 7 |
| Ethernet Combo ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of SIM slots | 1 Smart card (Mini SIM) |
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
